10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox

Type : Multi-Function Packaging Machine

Applicable Industries : Food & Beverage Factory, Food Shop, Food & Beverage Shops

Showroom Location : None

Condition : New

Function : Wrapping, Gluing

Application : Food, Chocolate/ Biscuit

Packaging Type : Film, Foil, Fold/ Envelop

Packaging Material : Paper, Laminated Film

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380V 50Hz,3-p

Place of Origin : Sichuan, China

Brand Name : ShengLi

Dimension(L*W*H) : 2900*1560*2150mm

Warranty : 1 Year

Key Selling Points : Long Service Life

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Gear, Bearing, Gearbox

After-sales Service Provided : Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Air Supply : 0.6MPa

Chocolate Size : 10-80*4-45*4-35 MM

Machine Material : Stainless Steel/Iron Steel

Packing Speed : 200-260 PPM

Control system : PLC

Tracking System : Photoelectric Eye

Signalling System : Sensor SICK

Seal : Cold Seal

Customized Product : Support

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : None

Marketing Type : Ordinary Product

Certification : CE Certification

Packaging Details : Wooden case package as the international trade package

Port : ShangHai

Supply Ability : 5 Set/Sets per Month

Price : $55,000.00/sets 1-2 sets

MOQ : 1pc

Contact Now

Product Description

Product Application

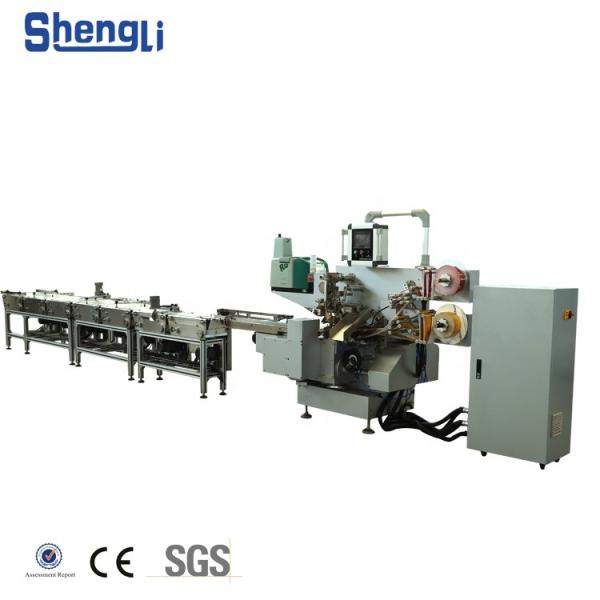

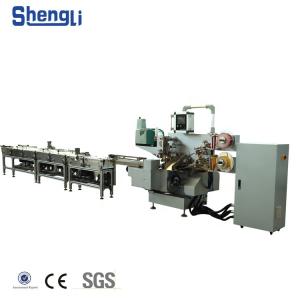

This complete machine is a fully automatic high-speed packing machine, which using automatic control to convey and wrap foods, such as chocolate and other food which are not easily be handled or fragile.
The complete machine consisted of one set SL-SBZB450D Folded Packing Machine and one set SL-SBZL500 Arranging and Feeding Machine

10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox
Main Features

1. Replace parts of the machine and pack another size.

2. Packing single and double layers at the same time
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox
Detailed Images
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox

Machine Parts

Name: Wrapping paper holder

Material: Stainless Steel

Function: Transfer wrapping paper

Servo motor controlled, transfer wrapping paper.

Main Parts

Name: Photoelectric eye
Brand: SICK
Original: Germany
The color code of the induction wrapping paper transmits the signal to the PLC system, controls the size of the wrapping paper, cuts the wrapping paper.

10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox

Machine Parts

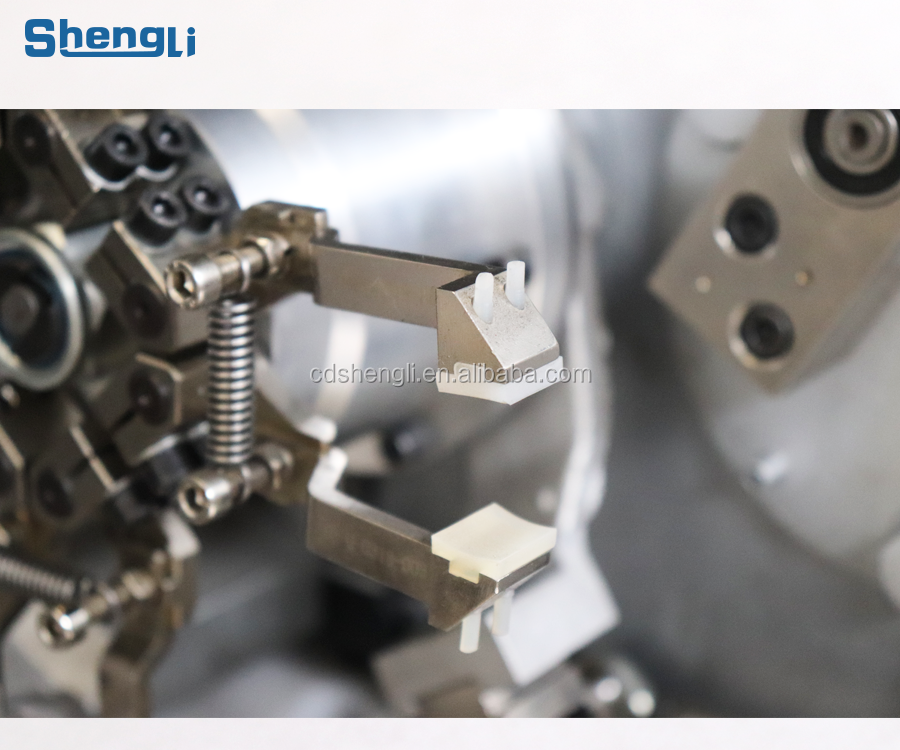

Name: Candy Clip
Material: Stainless Steel
Function: Fixing and Forming
Fix and transfer the chocolate while the chocolate is being wrapped.

Main Parts

Name: Robatech Gluing
Brand: Robatech
Original: Swiss
Cold seal, gluing.

10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox
Our Service
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox
Packaging
Size
2960 (L) * 1560 (W) * 2150 (D) MM
1560 (L) * 860 (W) * 1250 (D) MM
2360 (L) * 860 (W) * 1250 (D) MM
Weight
2.6 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
